what are the components we required to assemble a basic quadcopter..?
Here are the components
Before going to know about the components the main thing is to choose the what type of drone you want.Based on the type of drone the components may vary.so below components are for normal drones like flying and also for racing drones but board and motors may change.
![]() |
ARDUCOPTER |
Ardupilot is the most advanced, full-featured and reliable open source autopilot software available. ... It is the only autopilot software capable of controlling almost any vehicle system imaginable, from conventional airplanes, multi-rotors, and helicopters, to boats and even submarines.According to the Quadcopters we have 4 important RC CHANNELS.
They are
- Channel 1: Roll input
- Channel 2: Pitch input
- Channel 3: Throttle input
- Channel 4: Yaw input
we can also change these default channels setting using MISSION PLANNER SOFTWARE as shown below
After changing any of these parameters the autopilot should be rebooted.
For multi-copters, the RC calibration and ESC calibration should be re-done.
![]() |
ESC-ELECTRONIC SPEED CONTROLLER |
Based on the count of motors we have to connect the ESC's to the motors which will control the speed of the motors based on our input.And these ESC's are connected to ARDUCOPTER .
![]() |
MOTOR |
The above image shows the motors.Based on your requirements you can choose the motors.
the above motors capacity is 2300Kv and the RPM is 2300.the black and red bolts indicate the directions of the motor.
![]() |
DRONE BODY FRAME |

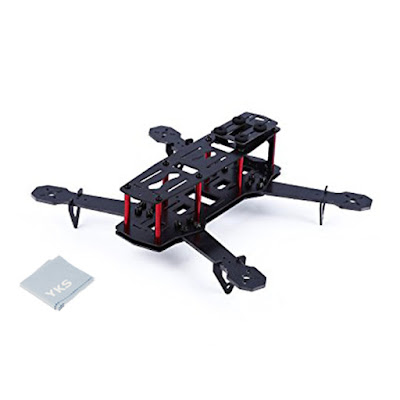

The above image shows Q250 Quadcopter carbon fibre FPV racing frame.its size is 250mm.
![]() |
DRONE BODY FRAME |
S500 Multi Rotor Air PCB Frame w/ High Landing Gear for FPV Quad-Copter
The above image shows S500 Multi Rotor Air PCB Frame w/ High Landing Gear for FPV Quad-Copter
![]() |
LITHIUM POLYMER BATTERY |
The above image shows the drone battery.Based on the size of the frame and capacity of the battery.mostly 4000MAH batteries enough for normal drones.
![]() |
WIRELESS TRANSMITTER AND RECEIVER |
The above image shows the FLYSKY transmitter and receiver.Female jumper wire is to bind the Receiver and transmitter together.It is 2.4GHz frequency kit.
![]() |
FEMALE JUMPER WIRES |
The above images shows the female to female jumper breadboard wires to make connections.
![]() |
GPS MODULE KIT |
The above image shows the GPS module,Vibrator,GPS module connecting wire and GPS stand.
The vibrator is to avoid the vibrations.And Yellow pin wire is power module which is used to connect the battery and it PDB.
![]() |
PROPELLERS |
The above image shows the propellers kit based on motors and type of drone have to choose type of propellers.the above propellers are for Racing drones.
These are the main components to assemble the DRONE.
Sunday, 12 January 2020
https://play.google.com/store/apps/details?id=com.rowlhouse.picasim&hl=en_IN
The above provided link is used get PICASIM (flight simulator) which will help in practicing drone simulation.
The above provided link is used get PICASIM (flight simulator) which will help in practicing drone simulation.
#pro15 Drone Plant Seeder | Aditya's Technical Hub | #TECHpro3.0
DRONE PLANT SEEDER
Our project title is DRONE PLANT SEEDER , it is like a prototype how drones are useful in agriculture in planting seeds and spraying fertilizers in short period of time.By using this technology we can increase the growth of development and makes work easy and safety. we done this project in PROJECT_SPACE 2.0 in ADITYA ENGINEERING COLLEGE, SURAMPALEM.
And one of the best option that we can fly the drone in autonomous mode (without manual control).
we done a project called AMBULANCE DRONE which will deliver a medical kit to injury place in short time by using GPS tracking without manual control.
Thursday, 2 January 2020
Customized DRONE
UAV-Unmanned Ariel Vehicle
What is a drone and how do drones work is answered here in this easy to understand article. Drone technology is constantly evolving as new innovation and big investment are bringing more advanced drones to the market every few months.
Below, we discuss UAV technology on the most popular drones on the market, which have all the latest drone technology. Most drones will have very similar systems incorporated.
Unmanned aerial vehicle technology covers everything from the aerodynamics of the drone, materials in the manufacture of the physical UAV, to the circuit boards, chipset and software, which are the brains of the drone.
Drones are of different types based on our requirement we decide the layout and parts.Like Quad copter, Hexacopter etc and Types are agricultural drones, security purpose Drones, surveying Drones etc.by using these basic customized drones students can learn more and more about flying things.
Drones are of different types based on our requirement we decide the layout and parts.Like Quad copter, Hexacopter etc and Types are agricultural drones, security purpose Drones, surveying Drones etc.by using these basic customized drones students can learn more and more about flying things.
